Dot Patterns

In the online printing world, “dot” refers to the pattern of dots that simulate a continuous tone image with solid ink. However, most modern printing technologies simply can’t produce these tones.

Instead, an online printer can produce printed images that contain a series of dots in specific patterns and these patterns simulate shades of gray.

Smartpress’ small format digital printing presses are at the cutting edge of technology, achieving 1600 DPI resolution, surpassing the quality of offset printing. This provides optimal smoothness on photo and high-end commercial applications.

Halftones

It’s important to note there are certain prints that may show dot patterns in halftones (creating a gradient-like effect), which is normal and can be expected.

A black and white halftone image consists of a single screen. In the images below, you’ll notice the pattern immediately when positioned at 0°. The pattern is more difficult to see when it’s rotated at 45°.

Moiré

A moiré occurs when multiple screens are printed on top of each other and the dot patterns don’t line up. Moiré patterns that are most difficult to look at occur when the screens are off by very small angles.

The best angle for two or more screens to be overlaid is 45°. You’re least likely to have patterns result in moiré and 45° is the most forgiving angle for small errors.

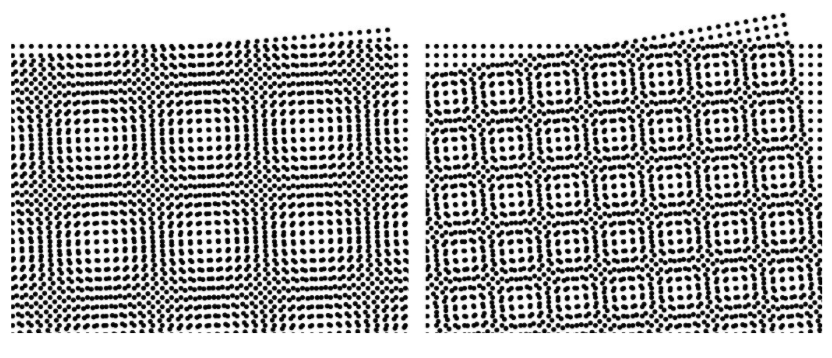

In the images below, you’ll see two halftone grids with overlaid angles at 5° and 10° apart. The moiré pattern is impossible to miss:

Four Color Process Printing

In four color process printing, four different screens are superimposed onto each other. These screens are also angled within the 90° limitation.

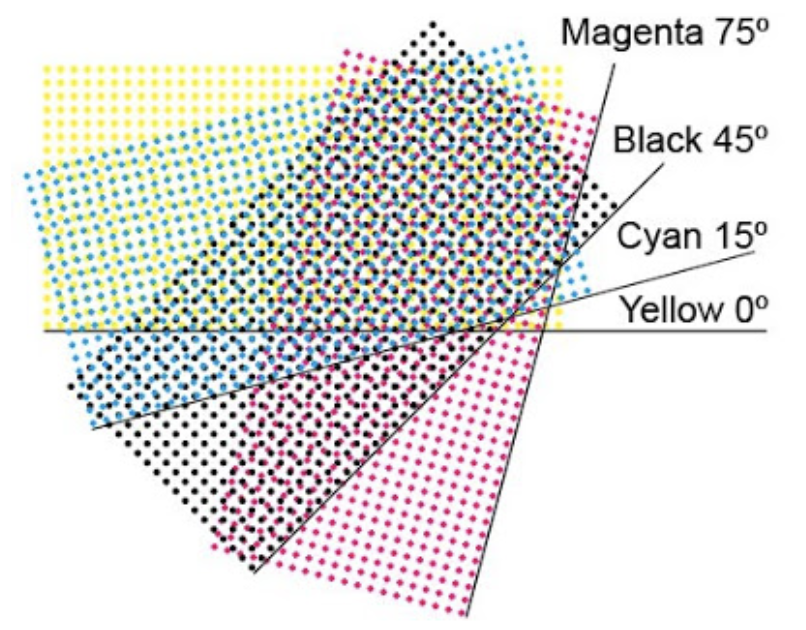

Because of this, the cyan, magenta, yellow and black screens must be overlaid at varying angles to result in the moiré that’s least offensive, as shown below:

When it comes to dot patterns, the presses we use feature stunningly high resolution and carefully calibrated screen angles that exceed the industry standard. And it’s all part of our premium online printing services. If you have concerns regarding moiré in your print, please contact your account representative.
